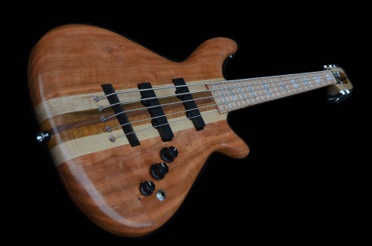

This is Larry’s Cherry Custom J Bass. It was a custom order, 30” scale, fretted bass.
The bass has Cherry wings, with a maple, walnut and purpleheat neck with an maple fretboard. As part of the refin’ I’ll be re-shaping the bass a little to give better access to the upper frets, slimming down the neck, adding new pick-ups, CTS pots, Orange Drop capacitor, inlays and side dots.
Work to be done:
Work Completed:
Strip bass of hardware
Remove lacquer, Sand at 60 grit.
Reshape to improve access to upper frets
Shape/thin neck
Re-shape neck to body join
Re-contour and carve edges
Recess aluminum fret markers
Defret and sand board to 1000 grit
Shape/sand body to 80-150 grit
Shape/sand neck to 220 grit
Clean up pick-up routs
Filled holes/gaps as required.
Sand body to 400 grit
Sand/shape neck to 400 grit
Rout for fingerboard inlays
Add new side markers
Shield cavities
Powder coat cavity cover
Seal wood
Re-fret
Apply Tru-Oil
Sand-back and polish
Redo wiring harness add orange drop capacitor and new pick-ups
Fabricate nut and bridge
Refit hardware
Final set up
Notes:
Larry wanted better access to the upper frets so I’ve cut away the upper and lower wings to allow for that.
Larry expressed a desire for block inlays, so I’ll go ahead with some pearl inlays. As well as pearl side markers having recessed the aluminum dowels. Ahead of that I’ve defretted the bass to allow me sand and mark out for the inlays.
We’re going to fit a matched pair of Aguilar AG 4J-60. I’ve sourced undrilled p-up covers so that I don’t need to worry about the cosmetic look of mismatched poles. The spacing of this bass is such that a 4 string p-up has the necessary width to cover the strings. I will need to re-rout the pick-up cavities to tidy them up a little.
That’s the neck and body sanding complete, with pick-up routs deepened and cleaned up as best they can.
I’ve added Fender V/V/T knobs as an homage to the original inspiration.
